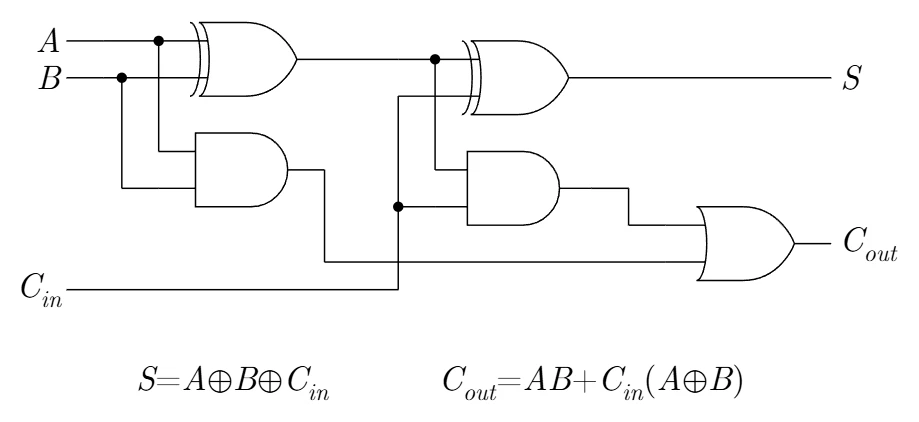

Full adder logic circuit with Boolean equations

Gate-level full adder with inputs \(A\), \(B\), and \(C_{in}\), producing sum \(S\) and carry output \(C_{out}\). The figure also shows the corresponding Boolean expressions for the sum and carry outputs.

circuits · logic · full-adder · digital-logic · boolean-algebra · xor-gate · binary-addition · logic-circuit
