BJT long-tailed differential pair

By Anonymous

TikzMaker is a visual editor for TikZ. Open this figure on the canvas, change anything you like, and take the generated TikZ code straight to your LaTeX document.

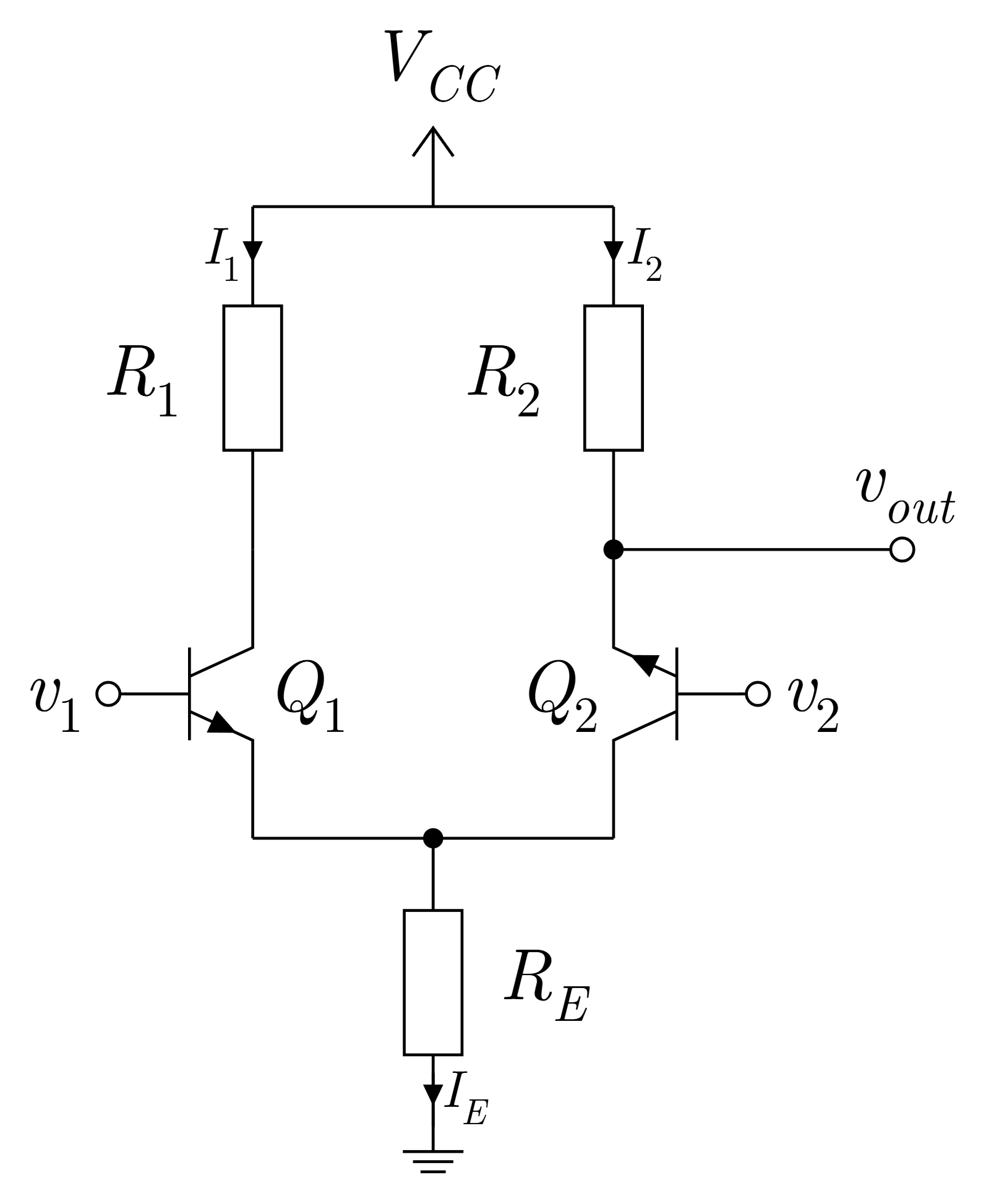

BJT long-tailed differential pair with two transistor inputs \(v_1\) and \(v_2\), collector load resistors \(R_1\) and \(R_2\), and a shared emitter resistor \(R_E\). The circuit illustrates a basic differential amplifier with a single-ended output taken from one collector.
