Thevenin and Norton equivalent circuits

By Anonymous

TikzMaker is a visual editor for TikZ. Open this figure on the canvas, change anything you like, and take the generated TikZ code straight to your LaTeX document.

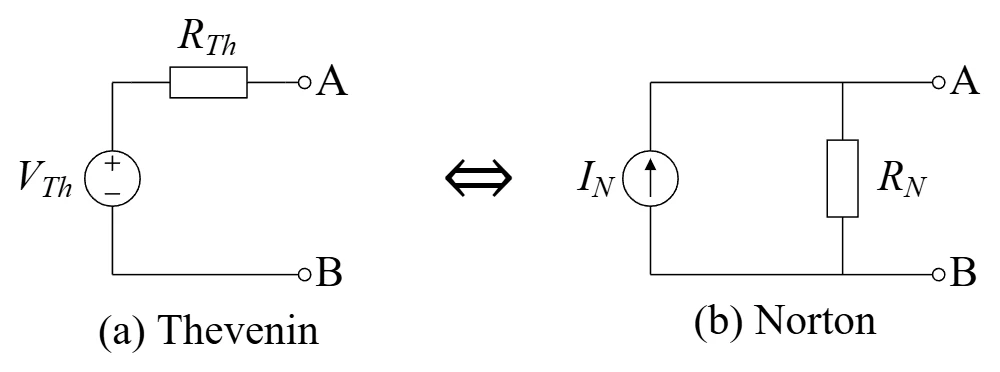

Comparison of equivalent Thevenin and Norton two-terminal circuits. The Thevenin form uses a voltage source \(V_{Th}\) in series with \(R_{Th}\), while the Norton form uses a current source \(I_N\) in parallel with \(R_N\), both connected across terminals A and B.

circuits · thevenin-equivalent · norton-equivalent · equivalent-circuit · circuit-analysis · voltage-source · current-source
