4-bit ripple-carry adder using logic gates

By Anonymous

TikzMaker is a visual editor for TikZ. Open this figure on the canvas, change anything you like, and take the generated TikZ code straight to your LaTeX document.

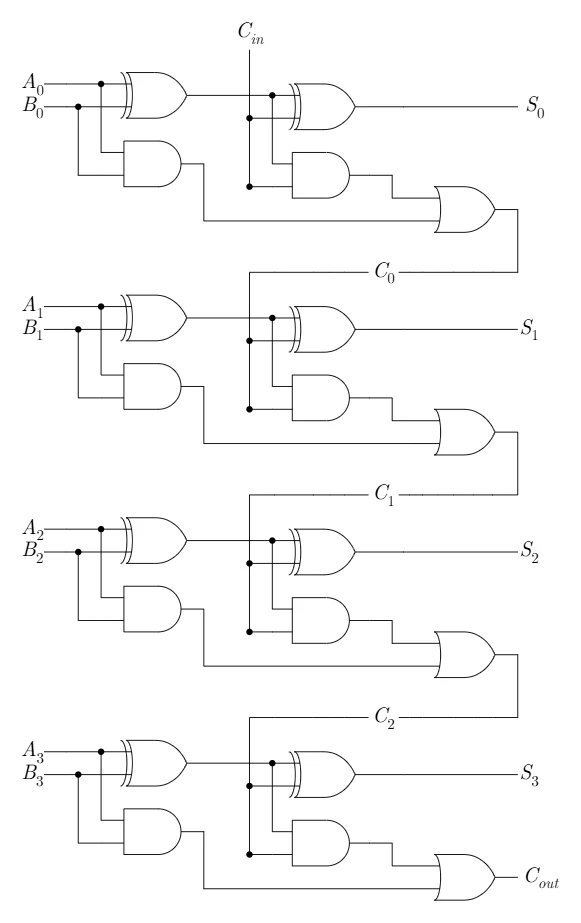

Gate-level implementation of a four-bit ripple-carry adder using cascaded full-adder stages. Each stage uses XOR, AND, and OR gates to compute the sum bit and carry, with each carry output feeding the next higher-order bit.

circuits · ripple-carry-adder · full-adder · logic-gates · digital-logic · binary-addition · four-bit-adder
