3-to-8 decoder

By Anonymous

TikzMaker is a visual editor for TikZ. Open this figure on the canvas, change anything you like, and take the generated TikZ code straight to your LaTeX document.

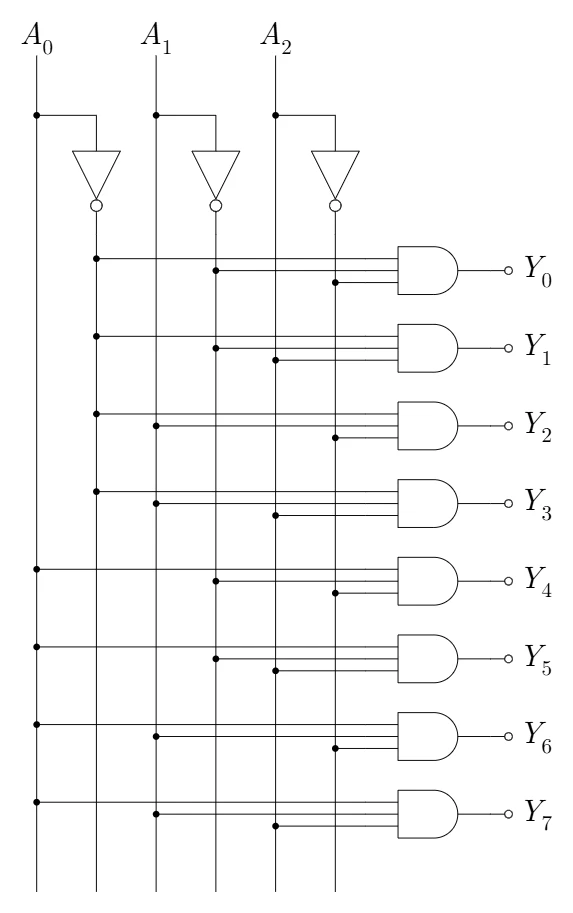

Logic-gate implementation of a 3-to-8 decoder. The circuit uses three inputs \(A_0\), \(A_1\), and \(A_2\), along with their complements generated by inverters, to drive eight AND gates that produce the decoded outputs \(Y_0\) through \(Y_7\).

circuits · logic · decoder · 3-to-8-decoder · digital-logic · logic-gates · combinational-logic · binary-decoder
