Half adder logic circuit

By Anonymous

TikzMaker is a visual editor for TikZ. Open this figure on the canvas, change anything you like, and take the generated TikZ code straight to your LaTeX document.

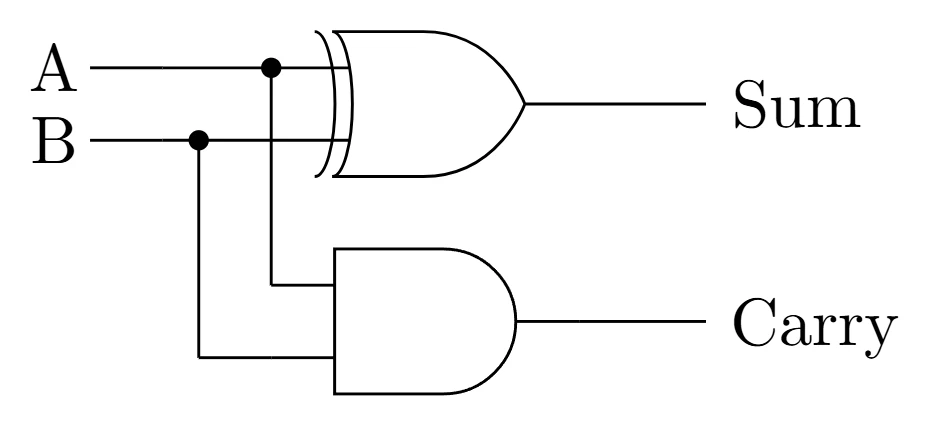

Half adder circuit with two binary inputs, \(A\) and \(B\). An XOR gate produces the Sum output, while an AND gate produces the Carry output.

circuits · logic · half-adder · digital-logic · xor-gate · and-gate · binary-addition · logic-circuit
