Coaxial cable cross-section in 3D

By Anonymous

TikzMaker is a visual editor for TikZ. Open this figure on the canvas, change anything you like, and take the generated TikZ code straight to your LaTeX document.

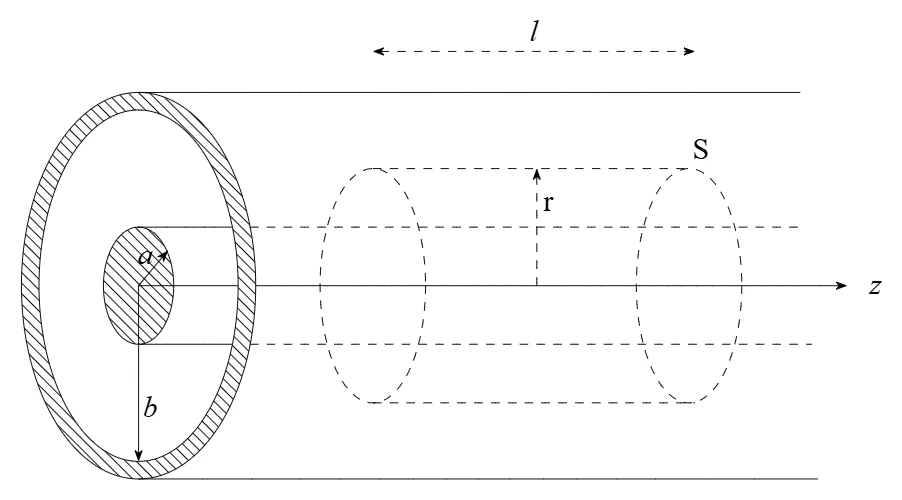

Coaxial cable drawn in perspective, with inner radius a, outer radius b, and a dashed cylindrical surface S of radius r and length l around the axis. The standard setup for applying Gauss's or Ampère's law to the field between the conductors.

physics · geometry · circuits · coaxial-cable · electromagnetism · gauss-law · cylinder · cross-section · 3d
