Full wave bridge rectifier with smoothing capacitor

By Anonymous

TikzMaker is a visual editor for TikZ. Open this figure on the canvas, change anything you like, and take the generated TikZ code straight to your LaTeX document.

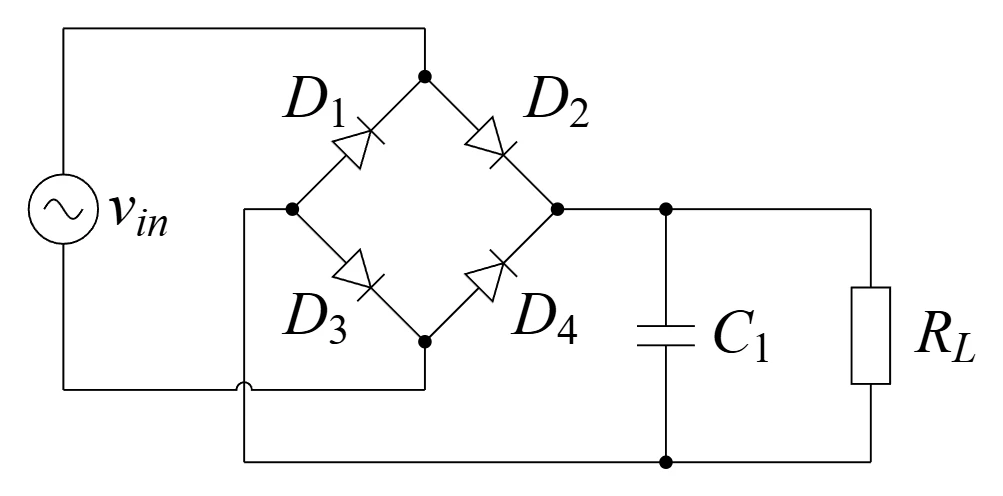

Full-wave bridge rectifier with a smoothing capacitor across the load. Four diodes convert the AC input to DC, and C1 flattens the ripple before it reaches RL.
