Voltage-divider biased common-emitter amplifier

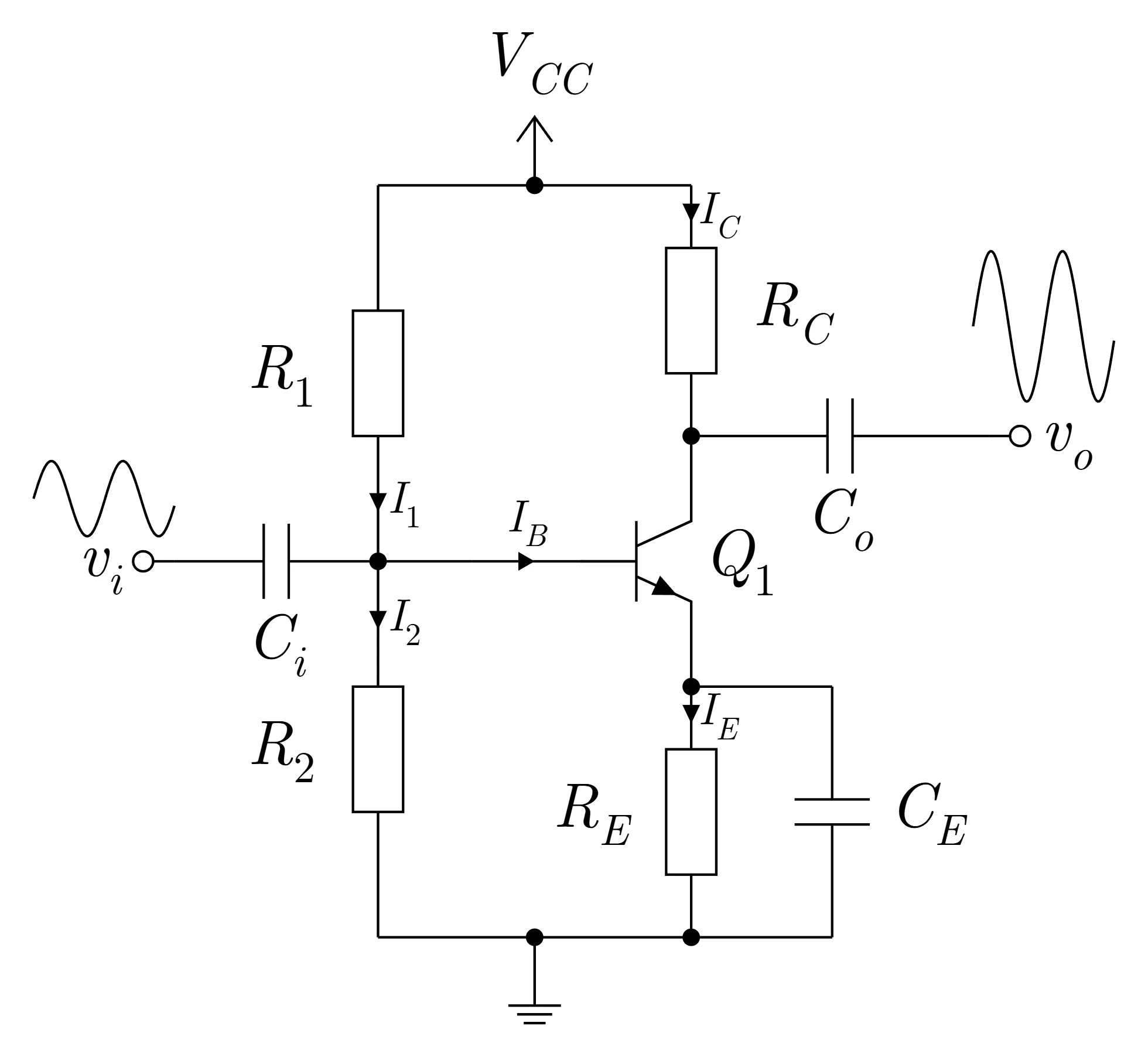

Common-emitter BJT amplifier with voltage-divider bias. Resistors \(R_1\) and \(R_2\) set the base bias, \(R_C\) and \(R_E\) establish the collector and emitter operating conditions, \(C_i\) and \(C_o\) provide input and output AC coupling, and \(C_E\) bypasses the emitter resistor for AC gain.

circuits · common-emitter · bjt-amplifier · voltage-divider-bias · transistor-amplifier · analog-circuit · coupling-capacitor
