Inverting op-amp amplifier

By Anonymous

TikzMaker is a visual editor for TikZ. Open this figure on the canvas, change anything you like, and take the generated TikZ code straight to your LaTeX document.

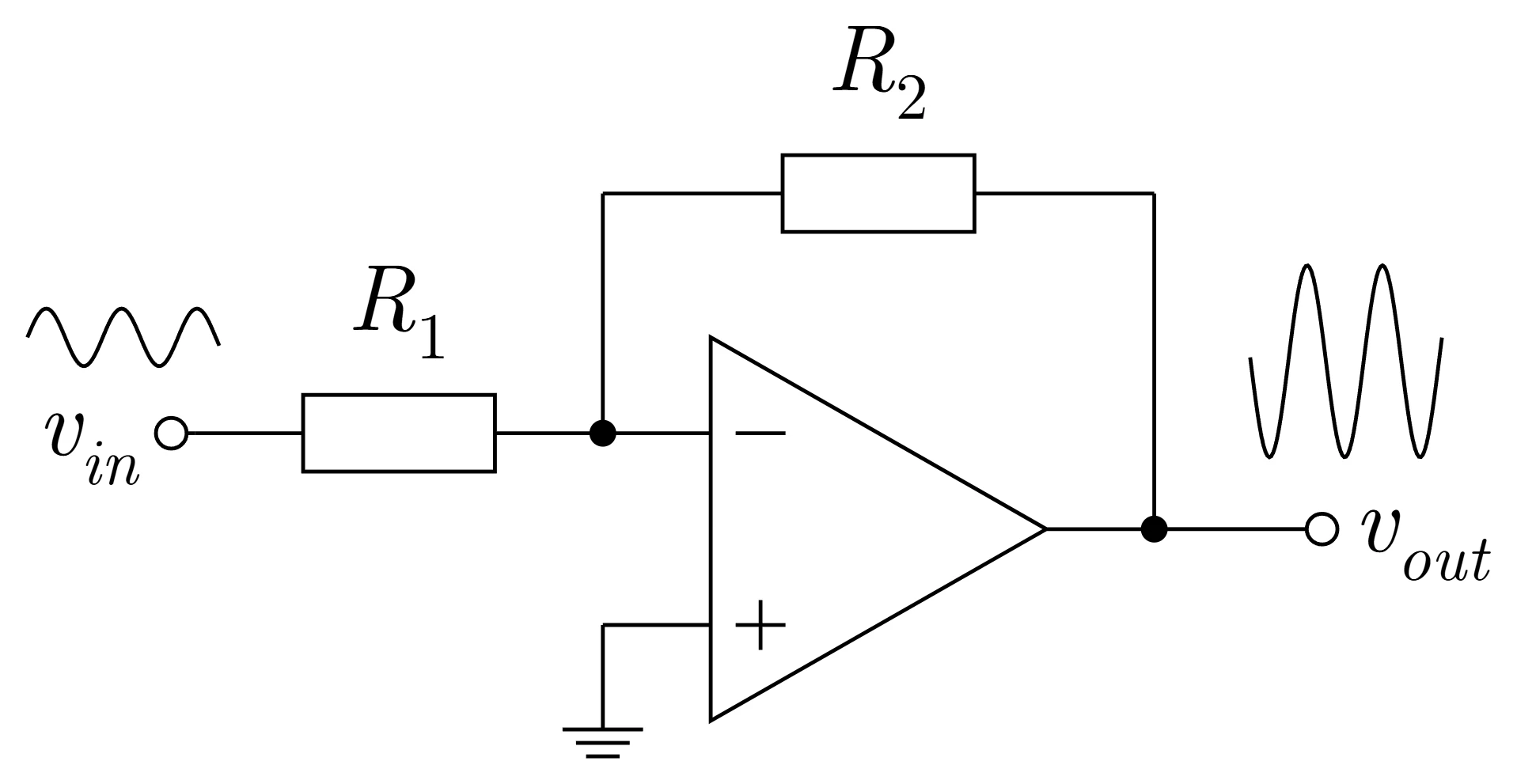

Inverting operational-amplifier circuit with input resistor \(R_1\) and feedback resistor \(R_2\). The non-inverting input is grounded, and the output is amplified and inverted relative to the input, with closed-loop gain \(A_v=-R_2/R_1\).

circuits · inverting-amplifier · op-amp · voltage-gain · negative-feedback · analog-circuit · amplifier
