SR latch using NAND and NOR gates

By Anonymous

TikzMaker is a visual editor for TikZ. Open this figure on the canvas, change anything you like, and take the generated TikZ code straight to your LaTeX document.

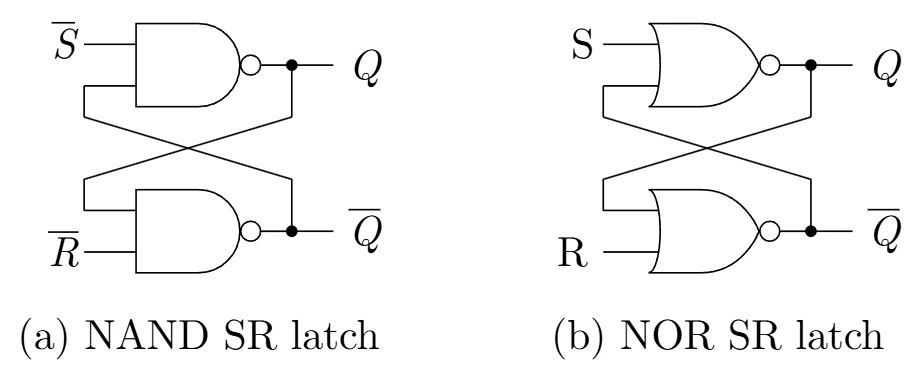

Comparison of two SR latch implementations. The NAND SR latch uses active-low set and reset inputs \(\overline{S}\) and \(\overline{R}\), while the NOR SR latch uses active-high inputs \(S\) and \(R\). Both circuits produce complementary outputs \(Q\) and \(\overline{Q}\).
