Full-adder and half-adder cells

By Anonymous

TikzMaker is a visual editor for TikZ. Open this figure on the canvas, change anything you like, and take the generated TikZ code straight to your LaTeX document.

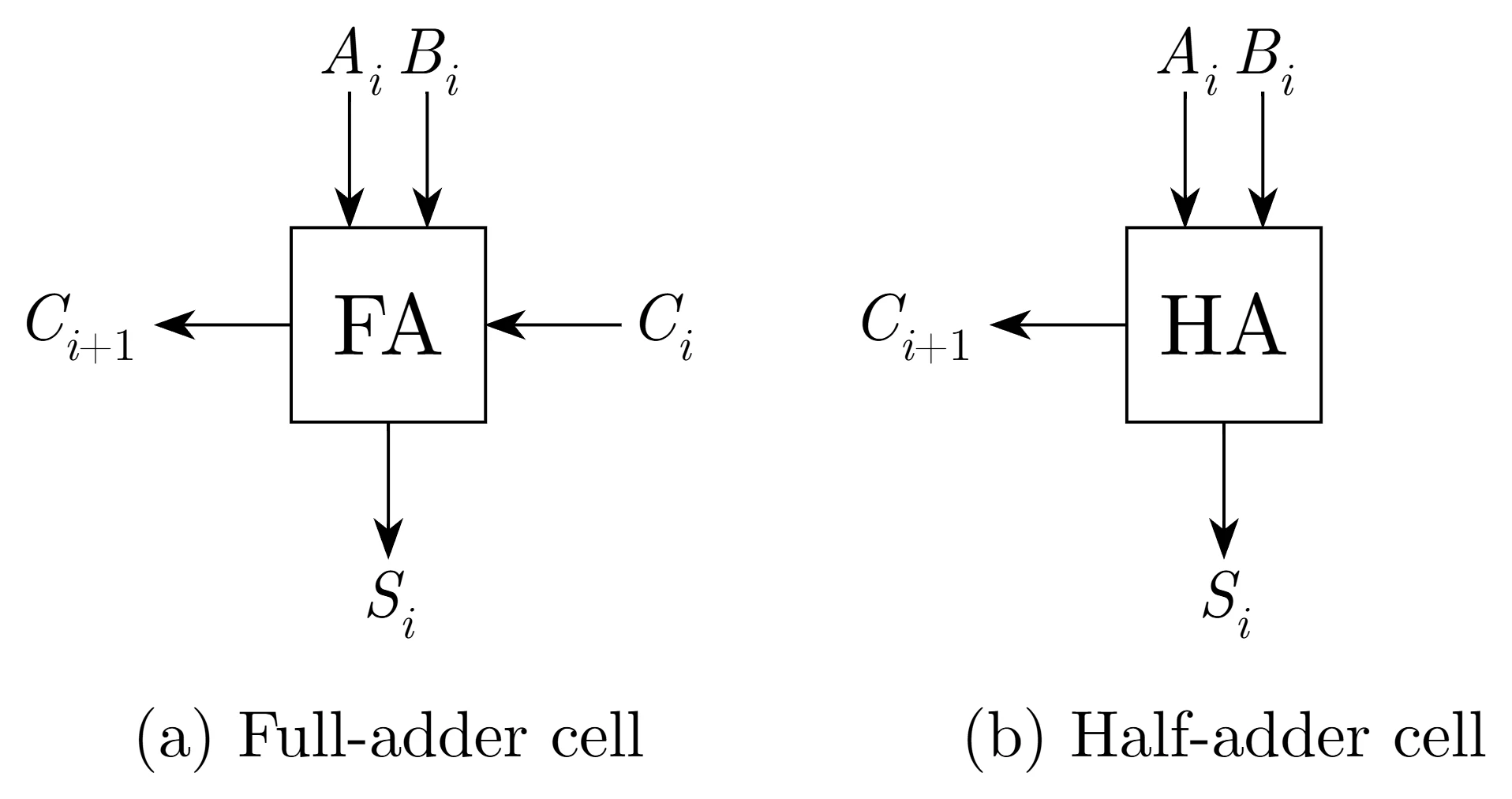

Block-diagram comparison of a full-adder cell and a half-adder cell. The full adder accepts input bits \(A_i\) and \(B_i\) together with carry input \(C_i\), producing sum \(S_i\) and carry output \(C_{i+1}\). The half adder adds only \(A_i\) and \(B_i\), producing \(S_i\) and \(C_{i+1}\).
